High Resolution Handheld Lidar Scanner 3D Mapping Made Easy EasyScan M10 / M10+

  • 1
  • 2
  • 3

Brand Name : EPiC LiDAR

Model Number : EasyScan M10 / M10+

Certification : CE, FCC

Place of Origin : China

MOQ : 1 set

Price : contact us

Payment Terms : L/C, T/T

Supply Ability : 100 sets per Month

Delivery Time : 2 Weeks

Packaging Details : Tool Case

Brand : EPiC LiDAR

Model : EasyScan M10/ M10+

Absolute Accuracy : 5cm

FoV : 280°×360

Scan Frequency : 320000 Pts/S, 640000 Pts/S

Relative Accuracy : 3cm

Battery Life : 2.5h per battery

Contact Now

High-Resolution 3D Mapping Made Easy EasyScan M10/M10+

With 360°rotate scanning mode and unique 3D SLAM algorithm technology, it can acquire high-precision and high-density 3D color point clouds in the adjacent space quickly and easily in the environment without GNSS.

Featuring a high-frequency scanning rate and advanced SLAM technology, the M10/M10+ system collects detailed 3D color point clouds. It’s a versatile choice for applications in commercial spaces, natural resource mapping, and more.

Product Introduction

Products Specification







System Parameter

ModelM10M10+
Mainbody Weight2.42kg(Including the scanner, Camera And Antenna)
Operating Temperature-10℃~50℃
Storage Temperature-20℃~60℃
Storage Consumption20W
Power Supply10~16.8V DC
Battery Duration2.5h For Single Battery
Data StorageUSB-disk 64GB
Compatible PlatformBackpack /Handhe|d








Laser Scanning Unit

Max Measurement Range120m120m
Laser ClassClass Ⅰ
FoV280°×360
Wavelength905nm
Camera FoV360°
Scanning Point Frequency320,000pts/s640,000pts/s
Relative Accuracy3cm
Absolute Accuracy5cm
Camera Reso|ution2MF

Features


Dual Modes
Available in handheld and backpack modes, flexible switch to meet various working requirements

Simplified Operation
RTK and camera integrated design, able to obtain true-color point cloud with georeference coordinates at once

High Precision
Relative Accuracy<3cm
Absolute Accuracy<5cm

One-stop Post-Process Solution
Automatically removing noise points, one-click mesh modeling

Applications

High Resolution Handheld Lidar Scanner 3D Mapping Made Easy EasyScan M10 / M10+
Building Modeling Digital Museum Shopping Mall Digital Plant Tunneling Underground

Accessories


High Resolution Handheld Lidar Scanner 3D Mapping Made Easy EasyScan M10 / M10+

Laser Scanner *1

Control Box *1

Panoramic camera*1

Backpack *1

GNSS *1

Handheld Handle *1

Scanner Kit *2

Connect Cable *1

Charge Cable*1

Charge adopter *1

Smart Battery *2

Charge Kit *1

Dongle*1

USB-Disk *1

Shoulder Strap *1

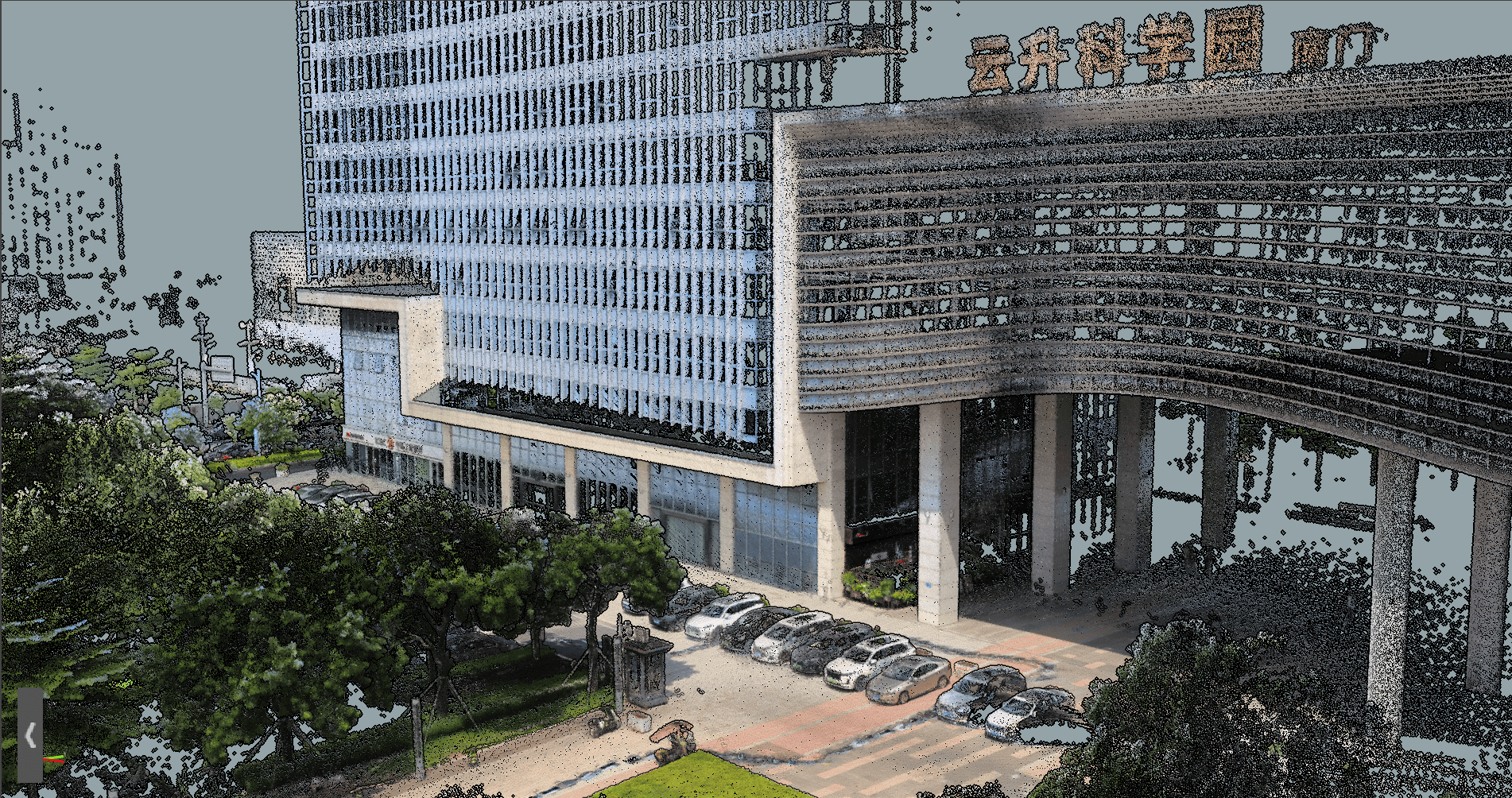

Sample Data Display


High Resolution Handheld Lidar Scanner 3D Mapping Made Easy EasyScan M10 / M10+High Resolution Handheld Lidar Scanner 3D Mapping Made Easy EasyScan M10 / M10+
