High Precision 3D Terrestrial Laser Scanner Long Range 1000m

  • 1
  • 2

Brand Name : EPiC LiDAR

Model Number : EliteScan T1000

Certification : CE, FCC, ISO9001...

Place of Origin : China

MOQ : 1 set

Price : Contact us

Payment Terms : L/C, T/T

Supply Ability : 100 Sets/ Month

Delivery Time : 2 weeks

Packaging Details : Tool Case

Measurement Range : 0.5~100m@20%

FoV : Horizontal 360°， Vertical 268°

Accuracy : 5mm@100m

Weight : 3.7kg

Point Cloud Density : 10m: >25,000 pts/㎡

HDR Imaging : Yes

Ranging Accuracy : 3mm@100m

Laser Class : Class Ⅰ

Wavelength : 1550nm

Contact Now

Product Introduction

Elite Scan T1000

T1000 is a fully self-developed high-precision and long range of terrestrial laser scanner. The system is designed to be most compact and portable. It can capture 3D topographic data in a wider land scape quickly, enabling to acquire true color of 3D point cloud in most demanding scenarios.

Product Specification

System Parameter

 Weight 7kg
Main Dimensions L210*W163*H270mm
External Power Supply Input Voltage 18~33V DC
Power Consumption Typical 50W
Data Communication Interface GigE
Humidity 80%, Non-condensing
OperatingTemperature -20C~+50℃
Storage Temperature -30℃~+60℃
Dual-axis Tilt Sensor Range ±5°

Laser Scanning Unit

 Ranging Method Pulse Ranging
Laser Class Class I
Laser Pulse Repetition Rate 00~2000 kHz
Max.Measuring Range 1400m
Min. Measuring Range 1.5m
Ranging Precision 3mm@100m
Accuracy 5mm@100m
Vertical FoV 100°(-40°~+60°)
Horizontal FoV 360°

Scanning Speed

 Vertical:3-150 lines/sec
Horizontal:max.18°/sec
Angle Measurement Resolution 0.001°
Accessories

Features:

Long Range

Excellent ranging ability, max. measurement range up to 1400m.

High Accuracy

Millimeter accuracy 5mm@100m, with more precision data details.

IIPR

Developed with independent intellectual property rights, upgrade guaranteed

Easy Extension

Supports customized integration and SDK.

Application:

High Precision 3D Terrestrial Laser Scanner Long Range 1000m

Polar Scientific Mine Monitoring BIM Industry Power Line Special

Research Metrology Inspection Structure

Case

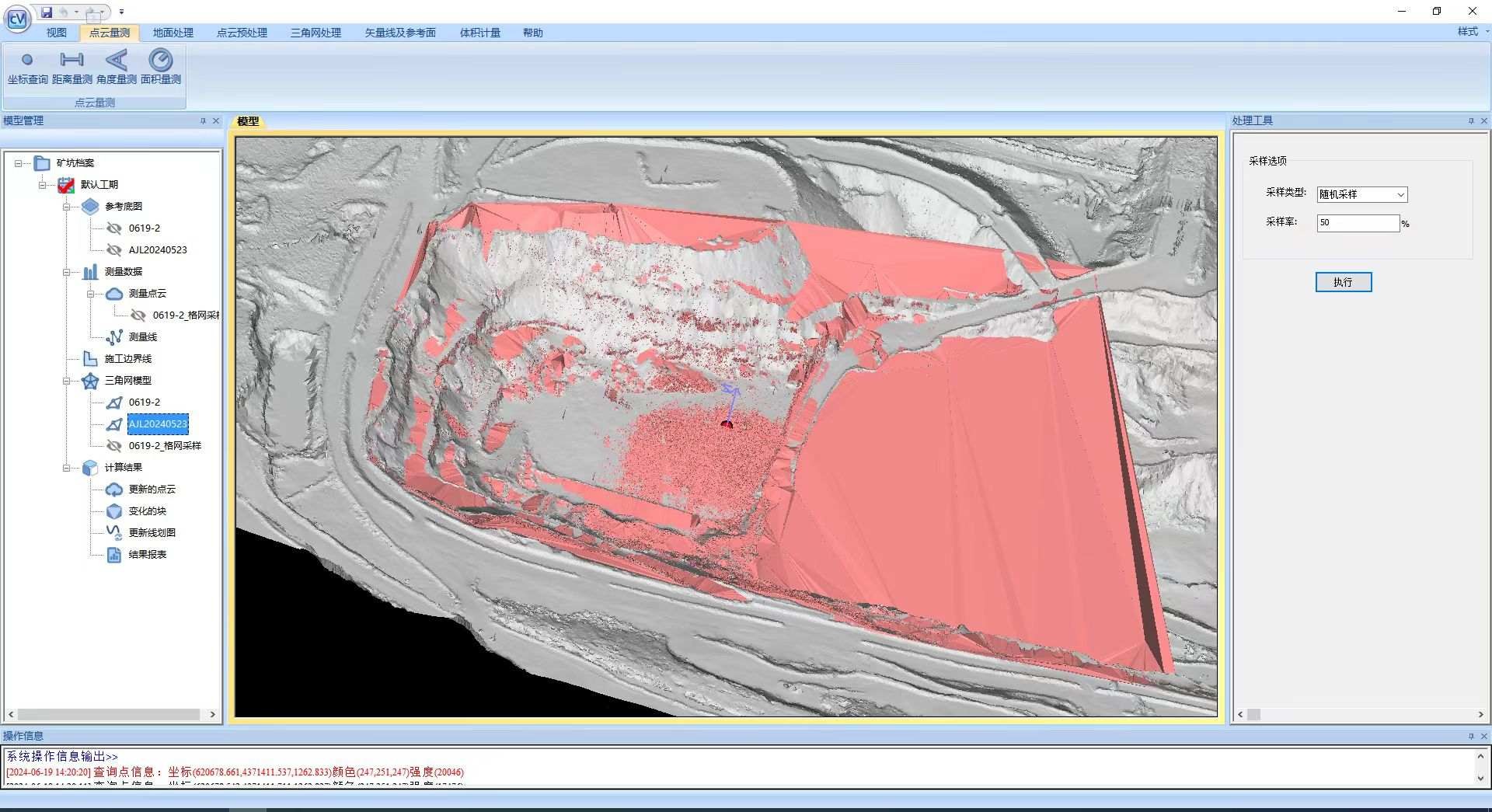

EliteScan T1000 was Applied to Mine Monitoring in China

High Precision 3D Terrestrial Laser Scanner Long Range 1000m

Sample Data Display

High Precision 3D Terrestrial Laser Scanner Long Range 1000m
