M05

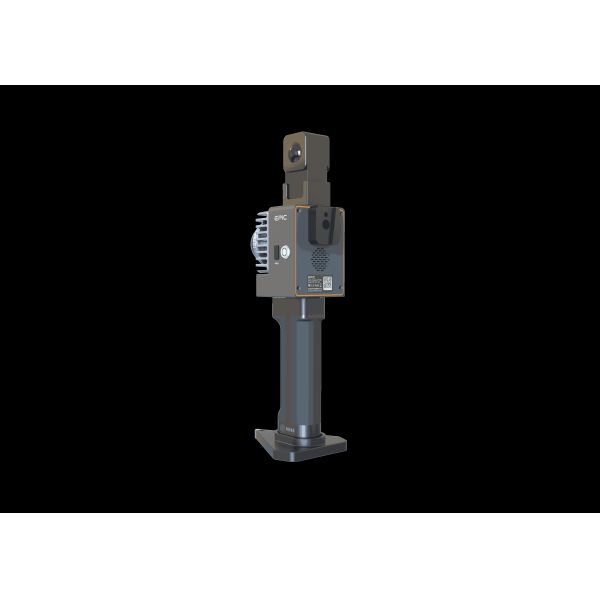

M05 adopts a more lightweight and compact industrial design, featuring a brand new hemispherical scanning mode, devoid of a single cable. Its powerful SLAM algorithm makes data collection more effortless and reliable for operators, acquiring point cloud, image, and GNSS data in one go, catering to the application, and scenario demands of diverse customer groups.
Product Introduction
Product Specification
| SYSTEM PARAMETER | Mainbody Weight | 860g |
| Operating Temperature | -10℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| System Consumption | 15W |
| Power Supply | 12~17.6V DC |
| Battery Duration | 2.5h for single battery |
| Data Storage | USB-disk 64GB |
| Compatible Platform | Handheld |
| Charging Interface | Type-C |
| LASER SCANNER UNIT | Max. Measurement Range | 30m |
| Laser Class | Class I |
| FoV | Horizontal 360°, Vertical -7~ 52° |
| Wavelength | 905nm |
| Scanning Point Frequency | 200,000pts/s |
| Relative Accuracy | 3cm |
| Absolute Accuracy | 5cm |
| CAMERA | Weight | 125g |
| Camera FoV | Panoramic camera |
| Camera Resolution | 18 MP |
Features
Ultimate Simplicity
Super lightweight, compact, cable-free design, less than 1KG
Easy to Operate
Initiating scan upon power on, user-friendly for beginners
Reliable Result
Hemispherical scanning, extensive coverage, high data credibility
Application
Civil Defense Fire Incident Pipeline Stockpile Tunnel Indoor
Engineering Inspection Inspection Measurement Engineering Space
Accessories
①Laser Scanner *1
②Panoramic camera*1
③Handheld Handle Battery *1
④Scanner Kit *2
⑤Charge Cable*1
⑥Charge adopter *1
⑦Dongle*1
⑧USB-Disk *1
Case
EasyScan M05 was Applied to a Measure the Ancient Building in China
Sample Data Display
