W50 LiDAR System Compact Powerful Mapping Tool Compatible To DJI M300 M350

Brand Name : EPiC LiDAR

Model Number : EliteScan W50

Certification : CE, FCC

Place of Origin : China

MOQ : 1 set

Price : contact us

Payment Terms : L/C, T/T

Supply Ability : 100 sets per Month

Delivery Time : 2 Weeks

Packaging Details : Tool Case

Brand : EPiC LiDAR

Model : EliteScan W50

Wavelength : 1550nm

Measurement Range : 500m@20%/ 1000m@80%Reflectivity

Flight Height(Operating) : 350m@20%/ 450m@35%Reflectivity

Ranging Accuracy : 5mm

Angle Measurement Resolution : 0.0018°

IMU : Integrated

Aerial Camera : External

Contact Now

Product Introduction

W50 is designed as a highly integrated airborne LiDAR system and its core parts are fully developed by EPiC LiDAR, including high-performance LiDAR, IMU and aerial camera. It features a long scanning range, lightweight, strong penetration and higher working efficiency than ever, which can deal with the most challenging and complex scenarios.

Compact and powerful, the W50 integrates LiDAR, IMU, and a 26 MP camera, optimized for diverse aerial mapping tasks. Its robust design and precise scanning capabilities make it perfect for forestry, mining, and environmental surveys.

Products Specification

System Parameter

Weight 1.21kg(Camera not Included)
1.40kg(Including 26 Megapixel Camera)
Dimension L156*W90*H117mm
SystemAccuracy Plane:5cm@150m Elevation:3cm@150m
Average Power Consumption 45W(Typical Value)
Power Supply 9~36V DC
Quick-release Interface DJI Skyport/EPiC Quick-release Interface customized interface
Data Storage High-speed USB Flash Drive (256GB)
Operating Temperature -20℃~50℃
Storage Temperature 30℃~60℃
Compatible Platform DJI M300/M350/Multirotor /FixedWing

Laser Scanning Unit

Scanning Principle Rotative Prism
Laser Class Class
Wavelength 1550nm
MeasurementRange 500m@20%/1000m@80%Reflectivity
Flight Height(Operating) 350m@20%/450m@35%Reflectivity
Ranging Accuracy 5mm
FoV 90°
Angle Measurement Resolution 0.0018°
Scanning Speed 90~300Lines/sec
Scanning Point Frequency 100~1000 kHz
Echo Mode 57 Return

IMU

GNSS Signal Tracking BDS,GPS,GLONASS,GALILEO
Positioning Accuracy(Post-processing) Plane: 1cm/Elevation:2cm
Position Sampling Rate 5H7
Attitude Accuracy(Post-processing) Heading:0.04°,Pitch/Roll:0.008°
Attitude Sampling Rate 500HZ

AERIAL CAMERA (EXTERNAL)

Effective Pixels 26MP 45MP
Sensor Dimension 025y15.6mn 36x24mm
Image Resolution 6240x4168 8192x5468
ImageWidth FoV 73° 90°
GSD

2.3cm@100m

Flight Height

2.Icm@100m

Flight Height

Features

Light Weight

Highly integrated with an overall weight 1.4kg only

Long Range

Typical flying height up to 400m.

Strong Penetration

With 7 echo returns, it can penetrate into vegetation to acquire ground points easily.

High Efficiency

Wider FoV and higher working efficiency.

Application

W50 LiDAR System Compact Powerful Mapping Tool Compatible To DJI M300 M350

Topographic Electricity Disaster Mining Nature Resource

Mapping Inspection Survey Mapping Investigation

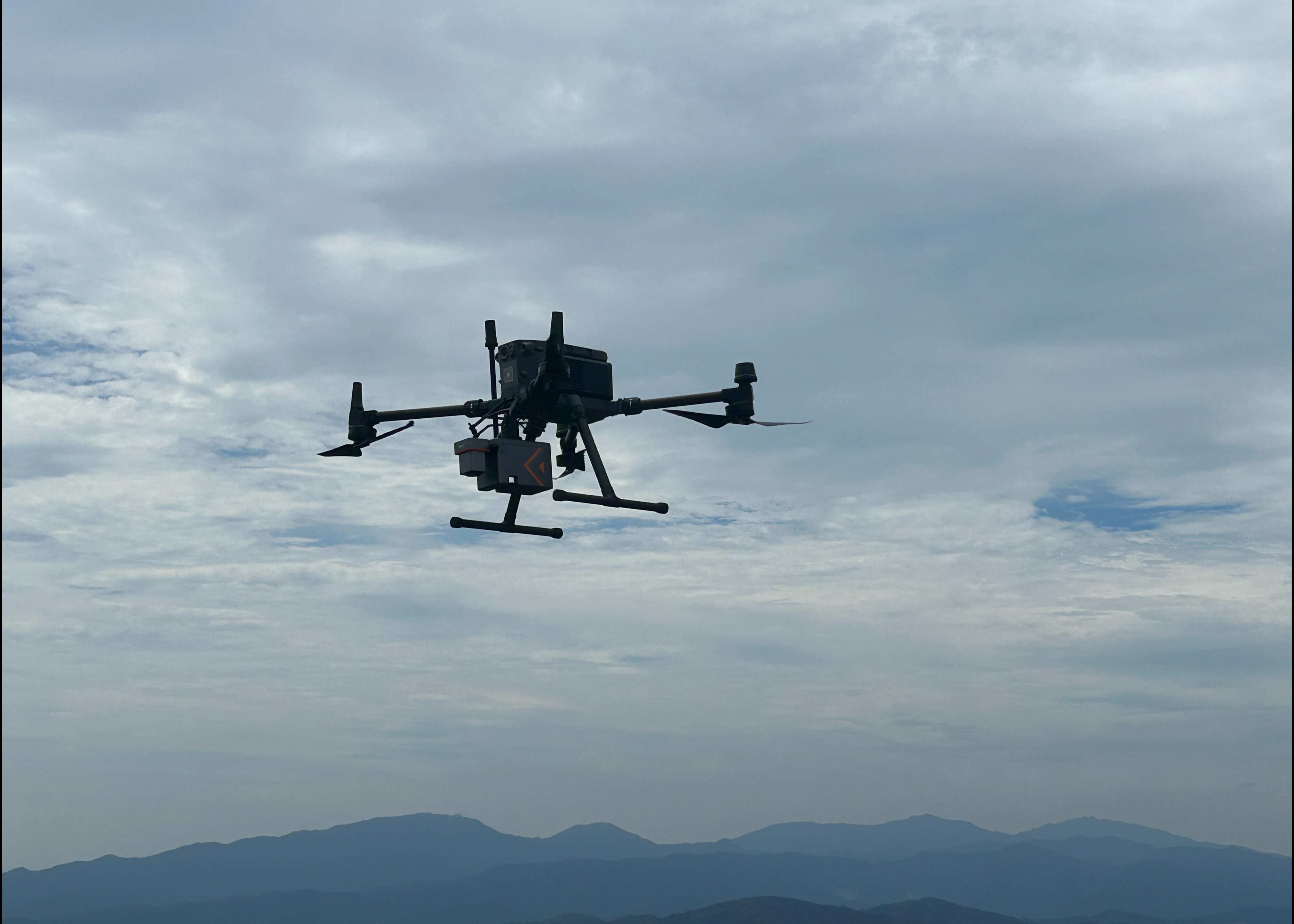

Case

W50 LiDAR System Compact Powerful Mapping Tool Compatible To DJI M300 M350W50 LiDAR System Compact Powerful Mapping Tool Compatible To DJI M300 M350

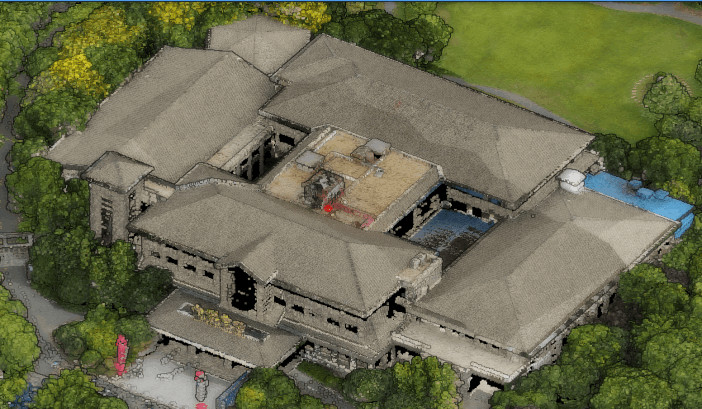

Sample Data Display

W50 LiDAR System Compact Powerful Mapping Tool Compatible To DJI M300 M350W50 LiDAR System Compact Powerful Mapping Tool Compatible To DJI M300 M350W50 LiDAR System Compact Powerful Mapping Tool Compatible To DJI M300 M350
