Product Introduction
W50 is designed as a highly integrated airborne LiDAR system and its core parts are fully developed by EPiC LiDAR, including high-performance LiDAR, IMU and aerial camera. It features a long scanning range, lightweight, strong penetration and higher working efficiency than ever, which can deal with the most challenging and complex scenarios.
The W50 system, designed by EPiC LiDAR, features a powerful blend of high-performance LiDAR, IMU, and an aerial camera, enabling precise data capture across diverse and challenging terrains. It excels in range and efficiency and is tailored for complex scenarios in topographic and resource mapping.
Products Specification
| System Parameter | Weight | 1.21kg(Camera not Included) |
| 1.40kg(Including 26 Megapixel Camera) |
| Dimension | L156*W90*H117mm |
| SystemAccuracy | Plane:5cm@150m Elevation:3cm@150m |
| Average Power Consumption | 45W(Typical Value) |
| Power Supply | 9~36V DC |
| Quick-release Interface | DJI Skyport/EPiC Quick-release Interface customized interface |
| Data Storage | High-speed USB Flash Drive (256GB) |
| Operating Temperature | -20℃~50℃ |
| Storage Temperature | 30℃~60℃ |
| Compatible Platform | DJI M300/M350/Multirotor /FixedWing |
| Laser Scanning Unit | Scanning Principle | Rotative Prism |
| Laser Class | Class |
| Wavelength | 1550nm |
| MeasurementRange | 500m@20%/1000m@80%Reflectivity |
| Flight Height(Operating) | 350m@20%/450m@35%Reflectivity |
| Ranging Accuracy | 5mm |
| FoV | 90° |
| Angle Measurement Resolution | 0.0018° |
| Scanning Speed | 90~300Lines/sec |
| Scanning Point Frequency | 100~1000 kHz |
| Echo Mode | 57 Return |
| IMU | GNSS Signal Tracking | BDS,GPS,GLONASS,GALILEO |
| Positioning Accuracy(Post-processing) | Plane: 1cm/Elevation:2cm |
| Position Sampling Rate | 5H7 |
| Attitude Accuracy(Post-processing) | Heading:0.04°,Pitch/Roll:0.008° |
| Attitude Sampling Rate | 500HZ |
| AERIAL CAMERA (EXTERNAL) | Effective Pixels | 26MP | 45MP |
| Sensor Dimension | 025y15.6mn | 36x24mm |
| Image Resolution | 6240x4168 | 8192x5468 |
| ImageWidth FoV | 73° | 90° |
| GSD | 2.3cm@100m Flight Height | 2.Icm@100m Flight Height |
Features
Light Weight
Highly integrated with an overall weight 1.4kg only
Long Range
Typical flying height up to 400m.
Strong Penetration
With 7 echo returns, it can penetrate into vegetation to acquire ground points easily.
High Efficiency
Wider FoV and higher working efficiency.
Application
Topographic Electricity Disaster Mining Nature Resource
Mapping Inspection Survey Mapping Investigation
Case

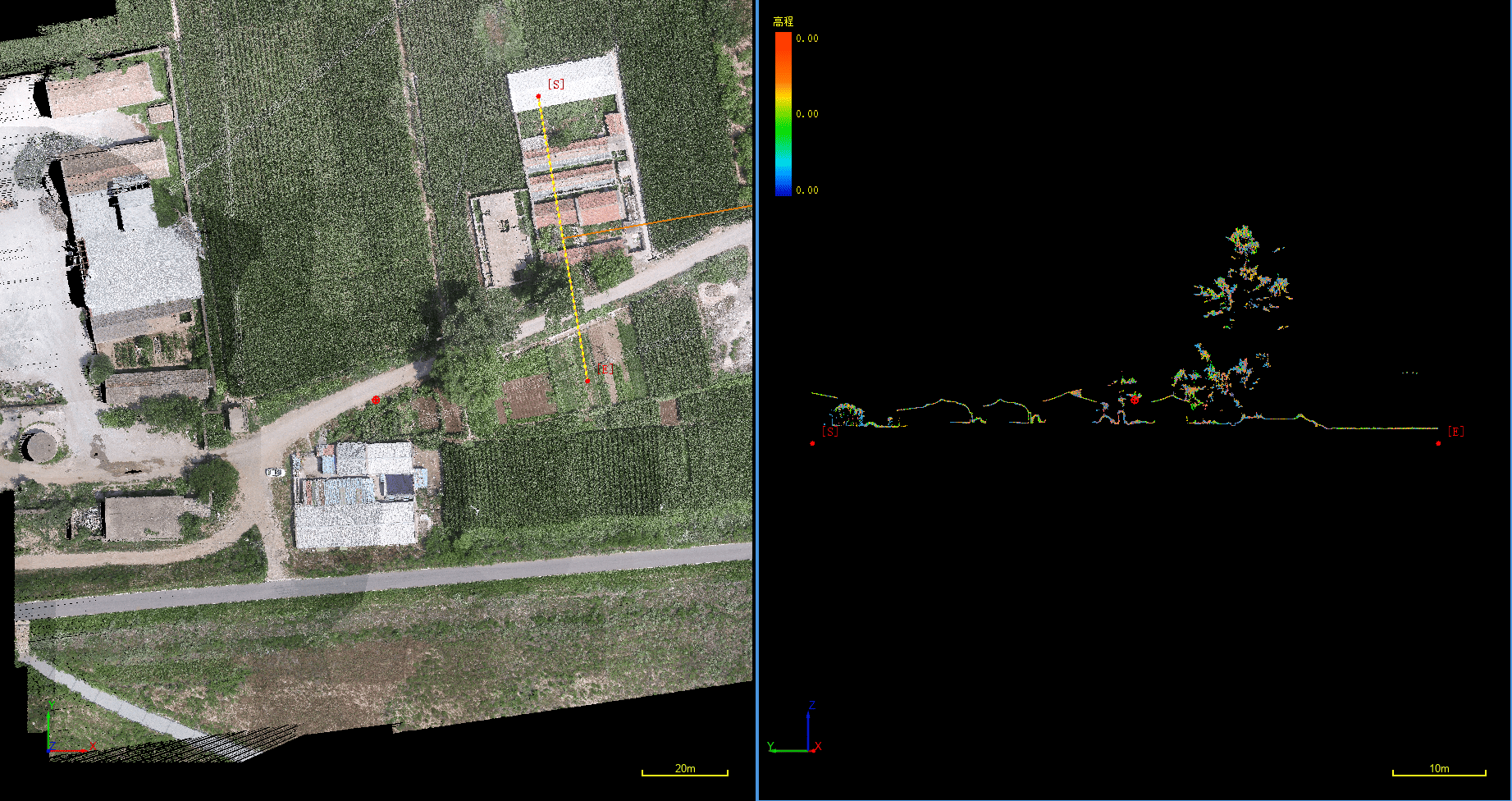

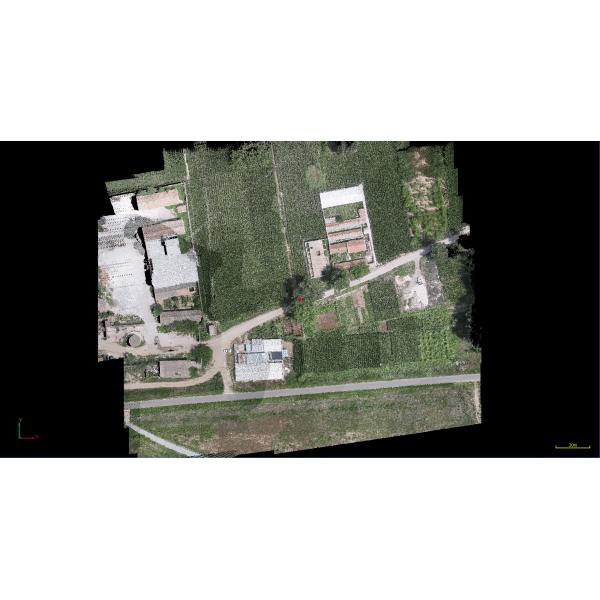

Sample Data Display
