Easy Scan X10 / X10+ Versatile 3D Laser Scanner Handheld SLAM And Airborne LiDAR

Wuhan Eleph-Print Tech Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Easy Scan X10 / X10+ Versatile 3D Laser Scanner Handheld SLAM And Airborne LiDAR

MOQ : 1 set

Price : Contact us

Payment Terms : L/C, T/T

Supply Ability : 100 sets per Month

Delivery Time : 2 weeks

Brand Name : EPiC LiDAR

Model Number : EasyScan X10 / X10+

Certification : CE, FCC

Place of Origin : China

Packaging Details : Tool Case

Brand : EPiC LiDAR

Model : X10 / X10+

Working Mode : Handheld SLAM and Aerial

Dataset : Contact us

Accuracy : 5cm

Flying Height : Suggest 80m-120m

Contact Now

Versatile 3D laser Scanner Handheld SLAM and Airborne Drone LiDAR

Products Introduction

Products Specification

Model XI0 XI0+

System

Parameter

Weight 280g
Dimension L159*W118*H127(mm)
Average Power Consumption 25W 26W
Power Supply 10~30V DC
Device Interface DJI skyport/other interface available upon request
Data Storage USB-disk 256GB
Operating Temperature -10℃~50℃
Storage Temperature -30℃~60℃
Syctem Accuracy 5cm
Compatible Platform DJI M300 RTK/Other UAV models

Laser Unit

Scanning Principle Mechanic Rotation Mirror
Laser Class ClassⅠ
Wavelength 905nm
Measurement Range 0.05m~120m@10%Reflectivity
Range Accuracy ± 1cn
Horizontal FoV 360°
Vertical FoV 30°(-15~+15°) 31°(-16~+15°)
Scanning Point Frequency Single Return:320,000pts/s Dual Return:640,000pts/s Single Return:640,000pts/s Dual Return:1,280,000pts/s
Return Mode Single Return/Dual Return

GNSS&IMI

GNSS Signal Tracking BDS,GPS,GLONASS,GALILEO
Positioning Accuracy(post-processing) Plane:1cm/Elevation:2cm
Position Data Rate ≥5HZ
Attitude Accuracy(post-processing) Heading:0.05°/pitch/roll:0.01°
Attitude Data Rate ≥200HZ

Aerial Camera (External)

Effective Pixels 26MP
Sensor Dimension 23.5×15.7mm
Image Resolution 6252×4168
Image Width FoV 73°
GSD 2.3cm@100m Flight Height

Slam Unit (Optional)

Weigh 1051g(Battery not Included)
Dimension L136W149 H108(mm)
Scanning Mode Fix Installed
Battery Duration 4h for Single Battery
Accuracy Relative Accuracy 2cm/Absolute Accuracy 5cm

Feature

High efficiency

Ultra light aerial survey module,image acquisition not limited by LiDAR measurement range, filght height can be appropriately increased to improve the operation efficiency.

Not affected by light

LiDAR is not affected by environment,less side overlap,wider coverage of single flight,data can be easily collected even in the night.

No signal limitation

Switch to SLAM mobile scanning mode, no limitation of GNSS signal, indoor and outdoor dataintegrated, collection makes the 3D data more complete

Real-time monitoring

Stimultaneous acquisition of point cloud and orthophoto to achieve the real-tim monitoring of flight trajectory, 3D point cloud and images during the whole flight of the system.

Accessories

Application

Easy Scan X10 / X10+ Versatile 3D Laser Scanner Handheld SLAM And Airborne LiDAR

Smart Topographic Emergency Smart Civil Defense Pipeline

Grid Mapping Rescue Mining Engineering Inspection

Case

EasyScan X10+ Applied on DJI M300 to measure ancient buildings in China

Easy Scan X10 / X10+ Versatile 3D Laser Scanner Handheld SLAM And Airborne LiDAREasy Scan X10 / X10+ Versatile 3D Laser Scanner Handheld SLAM And Airborne LiDAREasy Scan X10 / X10+ Versatile 3D Laser Scanner Handheld SLAM And Airborne LiDAR

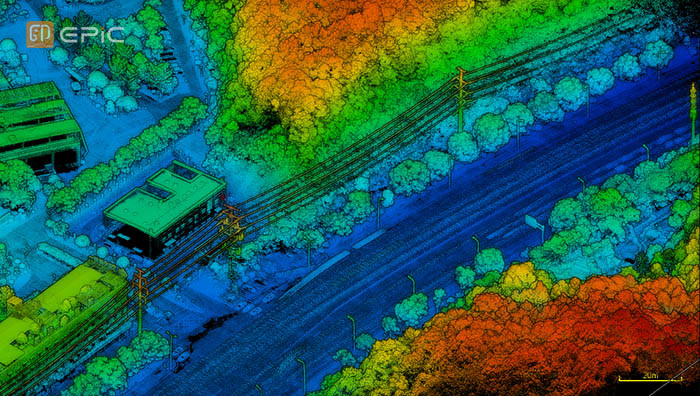

Sample Data Display
Easy Scan X10 / X10+ Versatile 3D Laser Scanner Handheld SLAM And Airborne LiDAREasy Scan X10 / X10+ Versatile 3D Laser Scanner Handheld SLAM And Airborne LiDAR
